| Article number: | 5293195 |
It's the right biker if you value confidence, stability, versatility and performance on recreational rides, fitness rides and commutes that cover a variety of terrain.
A lightweight aluminium frame with sleek internal cable routing and rack and mudguard mounts, wide 650b wheels and wide 50c tyres for capability and comfort on varied terrain, a reliable 2x8 Shimano drivetrain with a wide range of gearing so you're never pedalling too hard or too soft, comfortable ergonomic grips and powerful mechanical disc brakes for all-weather stopping power.

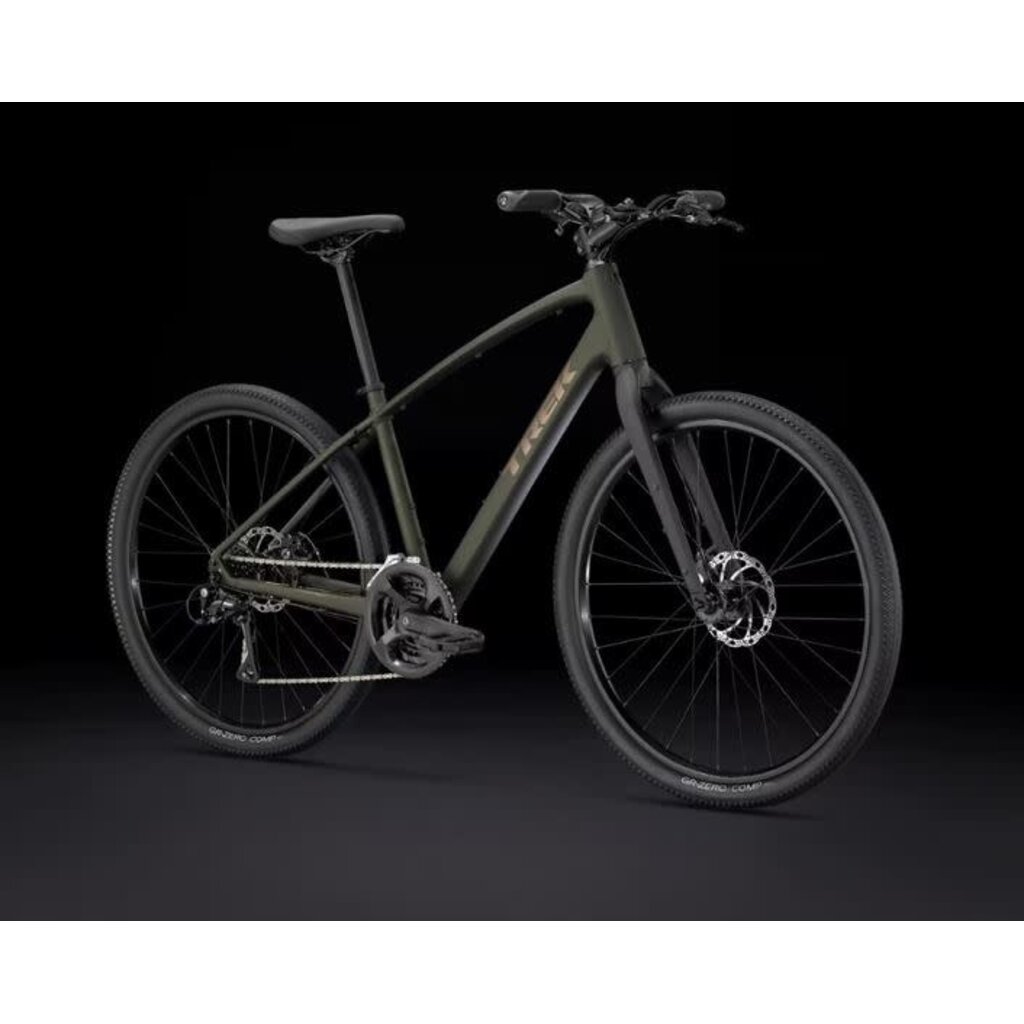

The Dual Sport 1 is a capable, versatile hybrid bike designed to help you explore more of your world. It’s the perfect hybrid bike for those who enjoy riding on both the road and on light trails.
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | Dual Sport steel, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |
| *Shifter | Size: XS, S, M, L, XL Shimano EF500, 2-speed |
|---|---|
| Size: XS, S, M, L, XL Shimano EF500, 8-speed |
|
| Front derailleur | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar | Size: XS, S, M Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
| Size: L, XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |
|
| Grips | Bontrager Satellite |
| *Stem | Size: XS, S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
| Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
|
| Brake | Tektro MD-U310 mechanical disc |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Weight | M - 14.05 kg / 30.98 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
