| Article number: | EBBM-JAVORN-20 |

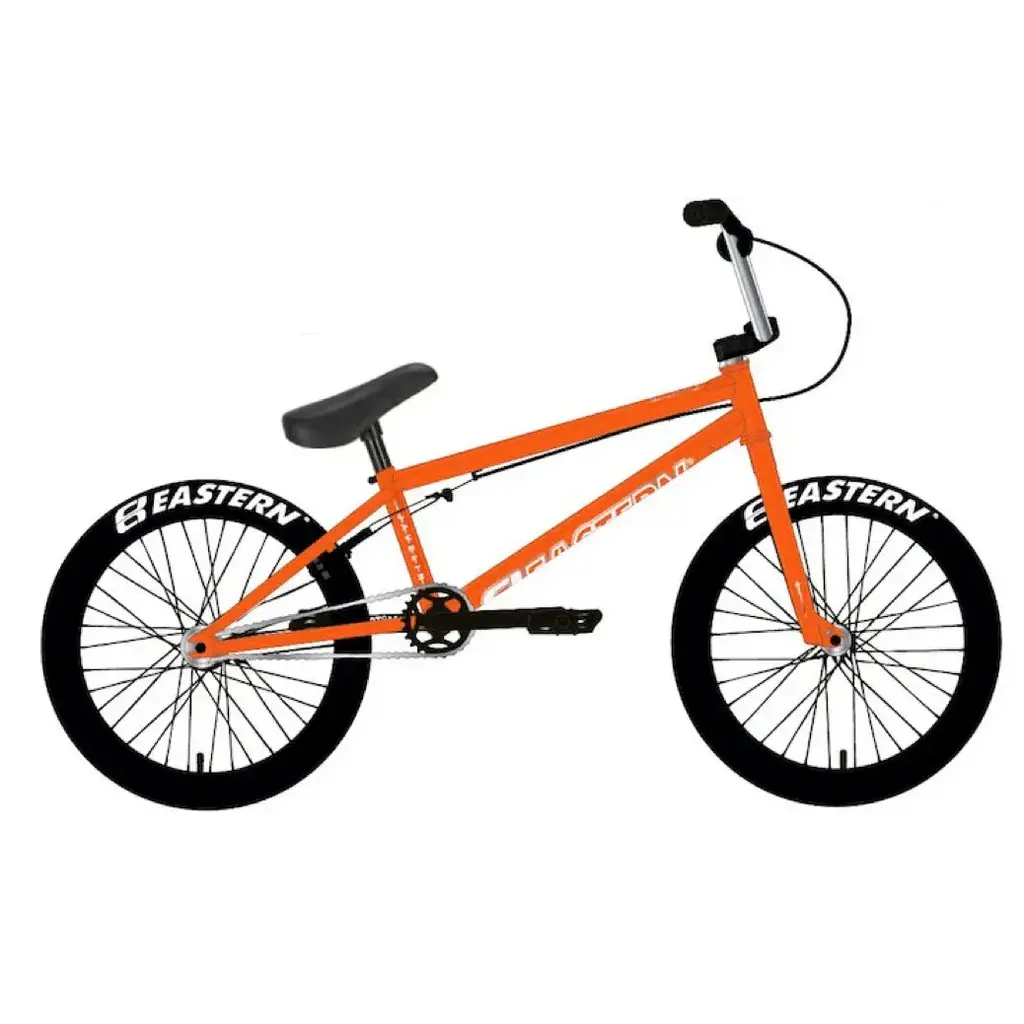

The Javelin features a rugged steel frame w/ chromo down tube, sealed rear hub for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, Eastern grips, pedals, and sprocket.
• Chromoly Down Tube
• Sealed Rear Hub
• 3 Piece Tubular Cranks
• Chromoly Steerer Tube
• Mid BB
• Integrated Headset
• Eastern Riblet Grips
• Eastern Atom Pedals
• Eastern Sprocket
• Double Wall Rims
• 2.4" Eastern OEM Tires
Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
Top Tube Size: 20.5″
BB: Mid
Headtube: Integrated
Chainstay Length: 13.38″
Clamp: Integrated with Frame
Upsweep/Backsweep 12⁰/1⁰
FORKChromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Fork Rake: 28mm
HEADSET Integrated 45°X45° Sealed Cartridge Bearing
STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips
CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
CHAIN KMC Z510 1/2 x 1/8
PEDAL Eastern Atom Plastic Pedal with 9/16" Axle
FRONT BRAKE N/A
FRONT LEVER N/A
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR
SADDLE Medium Width Seat/ Post Combo
POST Comes with seat
FRONT HUB Loose Ball, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes
REAR RIM Alloy, Double Wall, Drilled for 36 Spokes
SPOKES 14 Gauge with Brass Nipples
FRONT TIRE Eastern OEM 20 x 2.40
REAR TIRE Eastern OEM 20 x 2.40
PEG none
Bikes are designed for riders 13 years old and up.
