| Article number: |
MERE2501351 |

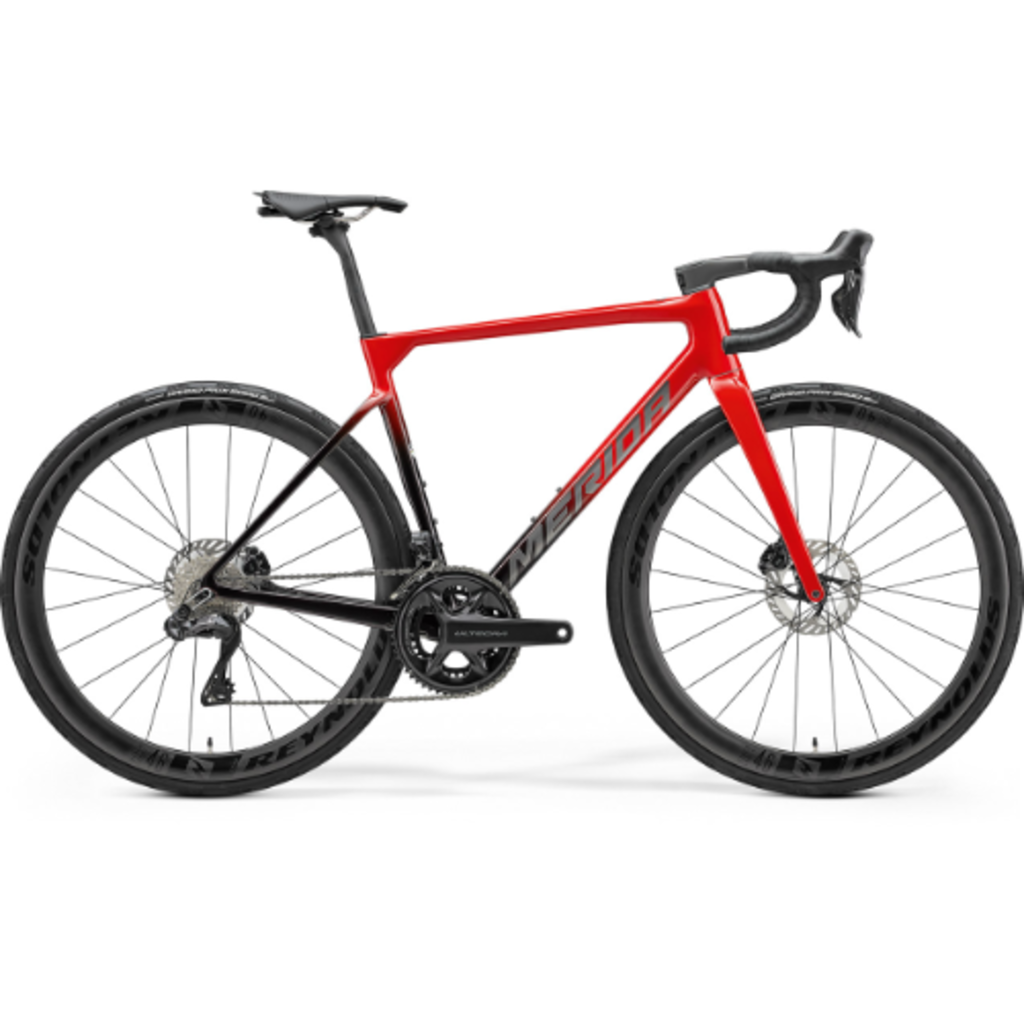

On top of a super-light frame, this bike has adapted a long list of 'streamlined' features from the REACTO and combined them perfectly with razor-sharp handling and class-leading race compliance.
*Super-light CF5 carbon frame (approx. 822 g - in size M) with race-proven (identical to REACTO) geometry
*Shimano Ultegra Di2 12-speed groupset
*MERIDA TEAM SL 1P one-piece cockpit
*Reynolds BL 46 EXPERT carbon wheelset with Continental 5000S TR 28 mm tyres
*MERIDA S-FLEX carbon seat post
*DISC COOLER technology
Specifications
| FRAME |
SCULTURA CF5 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5 |
| FORK |
SCULTURA CF5 disc; MAT carbon; 700x30C max. WHS |
| BRAKE LEVER |
Shimano Ultegra |
| BRAKE - FRONT |
Shimano Ultegra; Hydraulic disc |
| BRAKE - REAR |
Shimano Ultegra; Hydraulic disc |
| ROTOR - FRONT |
Shimano CL800; 160mm |
| ROTOR - REAR |
Shimano CL800; 160mm |
| C-HOUSING |
|
| CHAIN |
Shimano CN-M8100-12 |
| CHAINWHEEL |
Shimano Ultegra; 52-36 ATC |
| CRANK/SIZE |
165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| BB SET |
SM-BB72-41B, Pressfit 86.5 |
| DERAILLEUR - FRONT |
Shimano Ultegra Di2; FD-R8150 |
| DERAILLEUR - REAR |
Shimano Ultegra Di2; RD-R8150 |
| FREEWHEEL |
Shimano CS-R8101; 11-30 ATC; 12 GER |
| PEDAL |
|
| GRIP |
MERIDA ROAD Expert |
| HANDLEBAR |
TEAM SL 1P INTEGRATED; MAT carbon; 380mm (3S-XXS-XS-S), 400mm (M-L-XL) |
| H-B STEM |
TEAM ONE-PIECE INTEGRATED; MAT carbon |
| H-STEM/SIZE |
90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL |
| HUB - FRONT |
|
| HUB - REAR |
|
| AXLE - FRONT |
MERIDA EXPERT SL |
| AXLE - REAR |
MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
| RIM |
Reynolds BL 46 Expert DB, 100x12 WHF; 142x12 WHR; 21 IWR; 41 HRI; Centerlock; Shimano HG; MAT carbon; Tubeless ready (tubeless tape and valves included) |
| SADDLE |
SCRATCH M5; V-mount adapter; incl. MERIDA minitool |
| SEAT CLAMP |
MERIDA EXPERT |
| SEAT POST |
MERIDA TEAM SL; 27.2 DSP; 15 SSB; Carbon; S-Flex |
| SHIFTER - FRONT |
Shimano Ultegra disc Di2 |
| SHIFTER - REAR |
Shimano Ultegra disc Di2 |
| TYRE - FRONT |
Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| TYRE - REAR |
Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| E-SHIFT PARTS-2 |
Battery BT-DN300 |
| E-SHIFT PARTS-3 |
Shimano EW-SD300 x 2 |
| OTHER 5 |
MERIDA Multitool with saddlebox |
Please note - specifications subject to change without prior notice.
